Ordering Part Numbers:

1. Silicon-Free, Chemical-Resistant Vacuum Suction Cups:


ORRVACUP-2x2-002


ORRVACUP-4x2-002



ORRVACUP-4x2-AF-001



ORRVACUP-5x2-002



ORRVACUP-6x2-002


ORRVACUP-6x6-002




ORRVACUP-OVAL-4x2-001


ORRVACUP-OVAL-4x2-002



ORRVACUP-3INOD-HALF


ORRVACUP-3.0ID-4.0OD



ORRVACUP-4.8ID-8.7OD





2. Ø28 mm (ID) Rubber Bellow:



P/N: BELO-28MMID




3. 1/2" Pull-In Bushings:




P/N: ST2001-ID-L

  L:
1.00", 1.25", 1.50", 1.75", 2.00"
ID: 1/4", 5/16", 3/8", 7/19"
*** Custom sizes available




4. Counterbore Hole QC Pins, Delrin Spacers and S.S. Nuts (custom sizes available)




P/N: CB-QCPIN-OD

OD: 0.4310", 0.4315", 0.4320", 0.4325"

      P/N: CB-QCPIN-SPR-L
      L: 1/4", 1/2", 1.0"
     P/N: CB-QCPIN-NUT-TH
     TH: 3/8-24 (thread size)




5. 8-Hole DJ (Drill Jig) Assembly with matching Drill Bushings (23000 Series) and Index Pins

8-Hole HLT DJ Specime



23000 Series Drill Bushing


Index Pin


 P/N: 8HODJ-SP

 SP (hole spacing): 1/2", 3/4",
 1", or custom

 Material: AL6061/AL7075



  P/N: BUSH-8HODJ-ID


  ID: 1/4", 1/2", or custom sizes

  Material: Hardened Tool Steel














   P/N: INPIN-8HODJ-OD


OD: 1/4", 1/2", etc.

   Material: Hardened Tool Steel

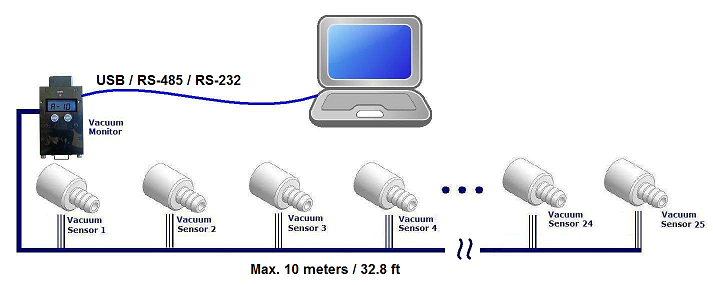

6. Vacuum Monitoring and Data Acquisition System: (Customized Expandable System)
